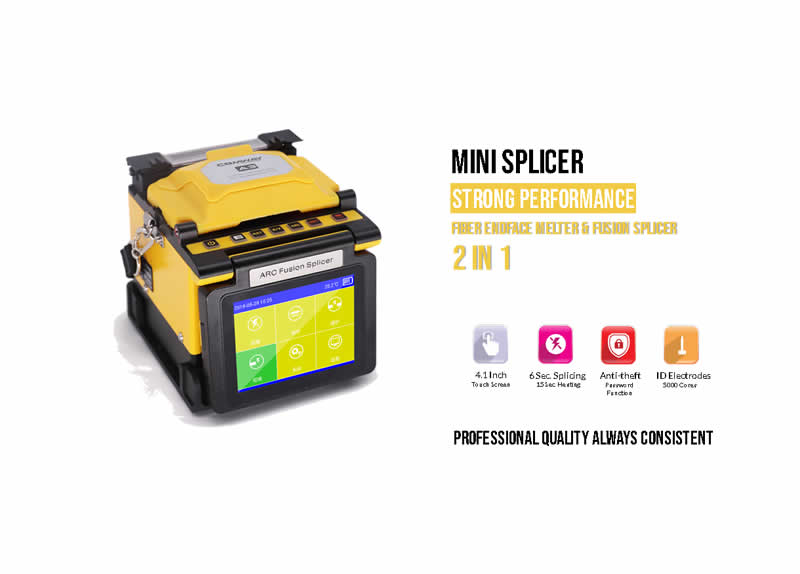

Comway Fusion Splicer A3

Comway A3 is a fusion splicer and a fiber endface melter, all in one. This is a compact and powerful tool for for SM, MM, DS, NZ/NZDS, BI optical fibers. It has cladding alignment with fixed V-grooves, and also includes the high-performance heater and ceramic fiber presser.

Demander un Devis
Catégories : ,
Description

Description

FEATURES

  • 2 in 1: a fusion splicer and a fiber endface melter.
  • Smart ARC control technology provides stable work under any conditions.
  • Fast and power saving high-performance heater.
  • The high-quality screen ensures clear viewing of results even under bright sunlight.
  • Ultra-narrow ceramic V-Groove. Suitable for all kinds of applications.
  • Stable and durable ceramic fiber presser.
  • Removable large capacity battery. Fully charged performs over 240 times splicing and heating.

TECHNICAL SPECIFICATIONS

Fiber AlignmentHigh Presicion PAS Alignment
Fiber TypeSM (ITU-T G.652)
MM (ITU-T G.651)
DS (ITU-T G.653)
NZ/NZDS (ITU-T G.655)
BI (ITU-T G.657)
Splice ModeSingle Fiber
Fiber DiameterCladding Diameter: 80-150 μm
Coating: 100-1000 μm
Cleave LengthCladding Diameter 250 μm: 8~16 mm
Cladding Diameter over 250 μm: 16 mm
Splicing ProgramsMax. 100
Splicing Time6 s (SM Fast); 15 s (SM G652)
Heating ProgramsMax. 30
Heating TimeAdjustable, 15 s typical
Splice Protector10~60 mm
Splice Image CaptureMax. 300
Splice Data StorageMax. 20,000
Splice LossSM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZ/NZDS: 0.04 dB; BI: 0.02 dB
Return Loss≥60 dB
Loss EstimationProvided
Operation ConditionTemperature: -20~+50 °C
Humidity: 0-95%
Altitude: 0-5000 m
Wind Velocity up to 15 m/s
Storage ConditionHumidity: 0-95%
Temperature: -40~+80 °C (Battery: -20~+40 °C)
Tension1,96~2,25 N
Fiber ViewTwo 300x cameras observation, 4.1 inch high-light color screen
Fiber Magnification300x for X or Y single axis view, 150x for both X&Y dual axis view
PortHigh-speed USB
Electrode Life5000 arc discharges
Power SupplyAC 100-240 V; 50/60 Hz
Battery4000 mAh
Dimensions, mm136 × 135 × 136
Weight, kg1,5 (1,8 with battery)

PACKAGE CONTENTS

  • Fusion Splicer Comway A3 — 1 pc.
  • User Guide — 1 pc.
  • Stripper CFS-2 — 1 pc.
  • Drop Cable Stripper — 1 pc.
  • High-precision Cleaver — 1 pc.
  • Carrying Case — 1 pc.
  • High-capacity Battery BAT-05 — 1 pc.
  • AC adapter ADC-05 — 1 pc.
  • Extra Electrodes — 1 set
  • Cooling Tray — 1 pc.
  • AC Adapter Cable ACC-01 — 1 pc.
  • Hand Strap — 1 pc.
  • Alcohol Bottle — 1 pc.
